A useful AI system does more than answer. It finds the evidence, interprets the situation, proposes the next step and completes the permitted work with a record of what happened.
A shipment is delayed. An invoice does not match its purchase order. A tenant asks why a recurring charge changed. In each case, the answer is scattered across documents, operational systems and business rules. A strong agentic AI architecture brings these together: it reasons where ambiguity exists and executes reliably where rules are known. This article proposes a reference architecture built on LangChain, LangGraph, RAG, vectorless retrieval, Deep Agents, guardrails, evaluation and LLM gateways, with illustrative use cases. It does not claim measured results or existing deployments.
THE SHIFT: Choose the model last → define the business outcome first → separate reasoning from the action boundary → measure cost per verified resolution.
Define the process before selecting a model. Choose a recurring problem with identifiable inputs, accessible evidence, a named process owner and an outcome that can be checked. For a shipment exception assistant, the scope could be: identify the cause of delay, assemble carrier and warehouse evidence, recommend a resolution and prepare a customer update.
Write acceptance criteria early. What is a correct recommendation? Which actions need approval? What happens when a carrier API is unavailable? Record current resolution time, human effort, error rate and escalation rate so the pilot has a baseline.
| Approach | Best fit | Example |
|---|---|---|
|
Deterministic automation |
Rules and steps are stable |
Calculate a late fee from an approved schedule |
|
RAG assistant |
The user needs grounded information |
Explain a clause with source citations |
|
Agentic workflow |
The next step depends on evidence or tool results |
Investigate a shipment exception and propose a resolution |
|
Deep Agent harness |
Work needs extended context and decomposition |
Assemble a complex case file across multiple documents |
Understand the Agentic AI Stack
Not every business process needs every layer. Start with one bounded workflow and a small tool set. Add specialist agents only when tasks benefit from isolated context or distinct permissions, and only after evaluation shows an improvement.
| Layer | Responsibility in the proposed system |
|---|---|
|
LangChain |
Connect models and tools; produce typed action proposals |
|
LangGraph |
Track case state; route decisions; pause and resume work |
|
Retrieval |
Locate authorized evidence and preserve source references |
|
Deep Agents (optional) |
Manage extended investigation context and delegated subtasks |
|
Guardrails and policy code |
Validate content, permissions and proposed actions |
|
Evaluation and observability |
Assess behavior, diagnose failures, track outcomes |
|
LLM gateway |
Apply approved model routing, budgets and provider failover |

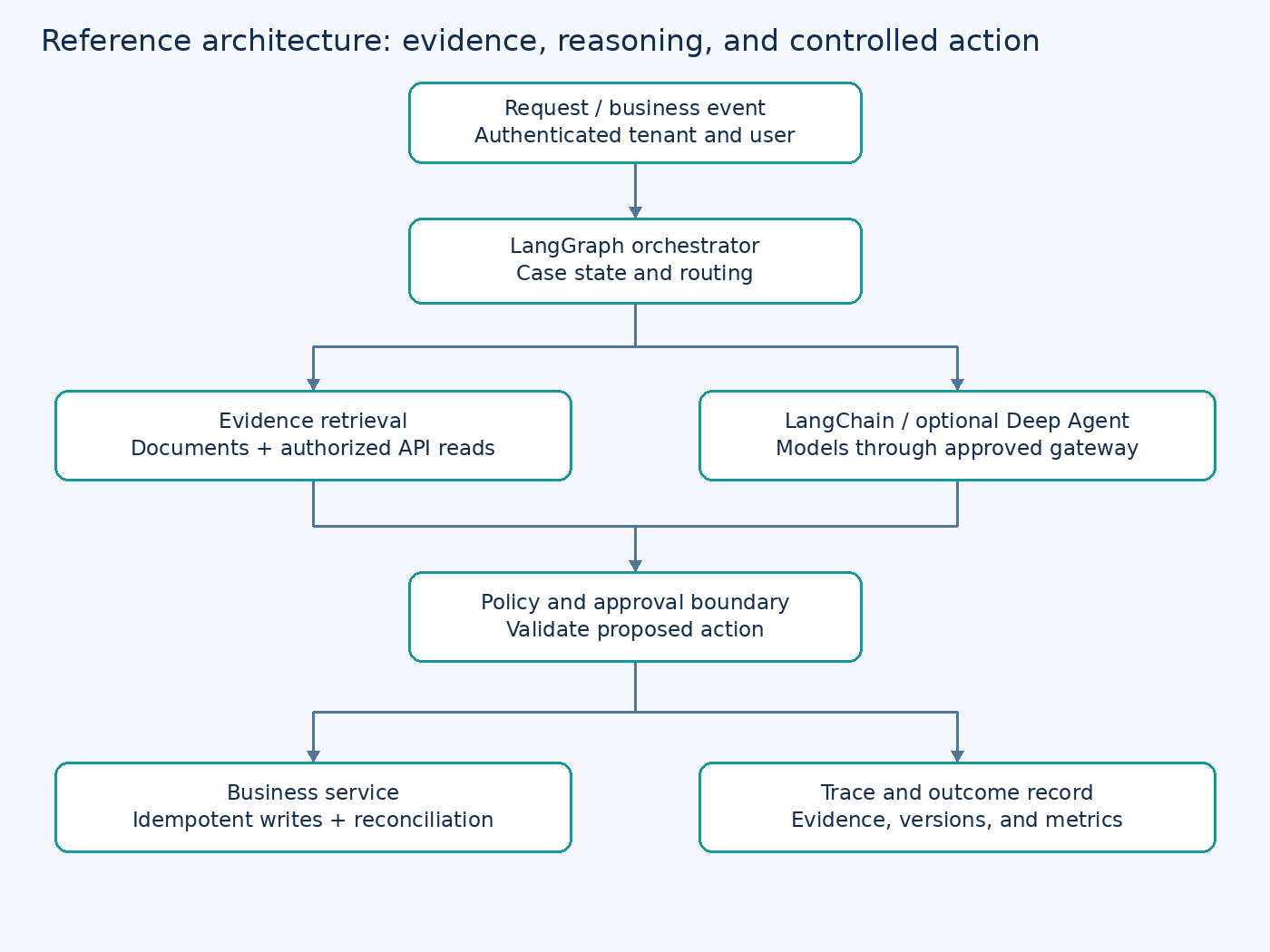

Separate the reasoning path from the action boundary. A model may recommend an operation, but an application service decides whether it is allowed. Business APIs stay responsible for authorization, transaction validation and final writes, so natural-language reasoning never becomes an unrestricted execution interface.
01 TYPED STATE
Explicit fields like case_id, tenant_id, source_refs, proposed_action, policy_result and approval_id. Unknown is not the same as a confirmed negative.
02 EVIDENCE PIPELINE
Authorized retrieval with stable source references, version metadata and visible ingestion failures.
03 ACTION BOUNDARY
Policy checks, scoped credentials, approvals and idempotent writes owned by business services.
Keep operational truth in the system of record. Pull live shipment status from the carrier API and financial amounts from the billing service. Use document retrieval for procedures and contract terms. Checkpoints support workflow continuity; they do not replace current operational data.
STRUCTURED ≠ CORRECT. Structured output can require an action type, rationale, evidence references and a status such as sufficient_evidence or needs_review. Schema validity establishes format, not factual correctness. Verify evidence and business constraints separately.
Treat working state, long-term memory and business records as separate concerns. Partition all three by tenant and enforce access checks on reads and writes.
Build an Evidence Pipeline
Ingest approved documents, extract text and tables, segment them into meaningful units and attach metadata: tenant, owner, version, effective date, section and access classification. Test whether known questions retrieve the required evidence.
Vectorless RAG is a family of approaches, not a single standard. PageIndex demonstrates reasoning-based navigation through a hierarchical document index without a vector database. It still requires indexing, storage and retrieval work.
| Question | Vector or hybrid retrieval | Tree-based vectorless retrieval |
|---|---|---|
|
Typical fit |
Broad collections of varied documents |
Long documents with useful section hierarchy |
|
Selection mechanism |
Similarity and/or lexical relevance |
Navigation through document structure |
|
Evidence unit |
Indexed chunks with source metadata |
Selected sections or pages |
|
Engineering tradeoff |
Chunk boundaries and index maintenance |
Tree construction and navigation overhead |
|
How to choose |
Benchmark relevance, latency, cost and citations |
Same benchmark and access rules |
Vectorless, reasoning-based retrieval
Navigates a hierarchical document tree so chapters, clauses and pages keep their relationships, which can help investigations in structured documents such as insurance policies. Neither vectorless nor vector retrieval guarantees accuracy.

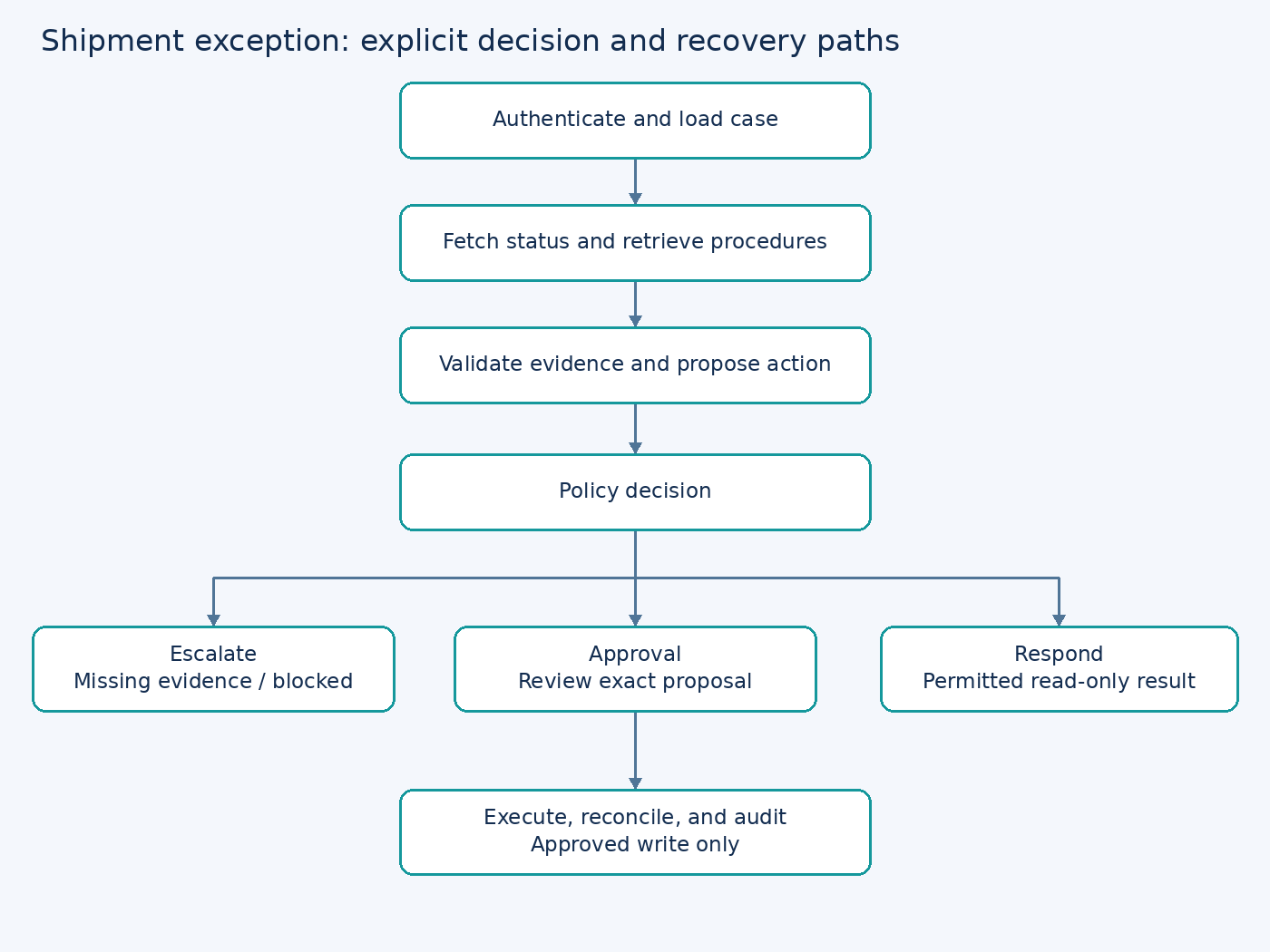

For the shipment example, the workflow authenticates the request, gathers evidence, proposes a next step and checks policy. Insufficient evidence leads to escalation. A permitted read-only response returns directly. A write follows the approval policy before execution and reconciliation.
LangGraph interrupts pause for external input and resume a saved workflow. They need checkpointing and a stable thread identifier, and production needs durable persistence. A thread identifier is a lookup key, not an access credential.
RECOVERY ≠ EXACTLY ONCE. A node may execute again during checkpoint recovery. Separate approval from the write node, attach a stable business operation ID, and let the backend enforce idempotency. If a timeout leaves the outcome uncertain, reconcile against the system of record before retrying.

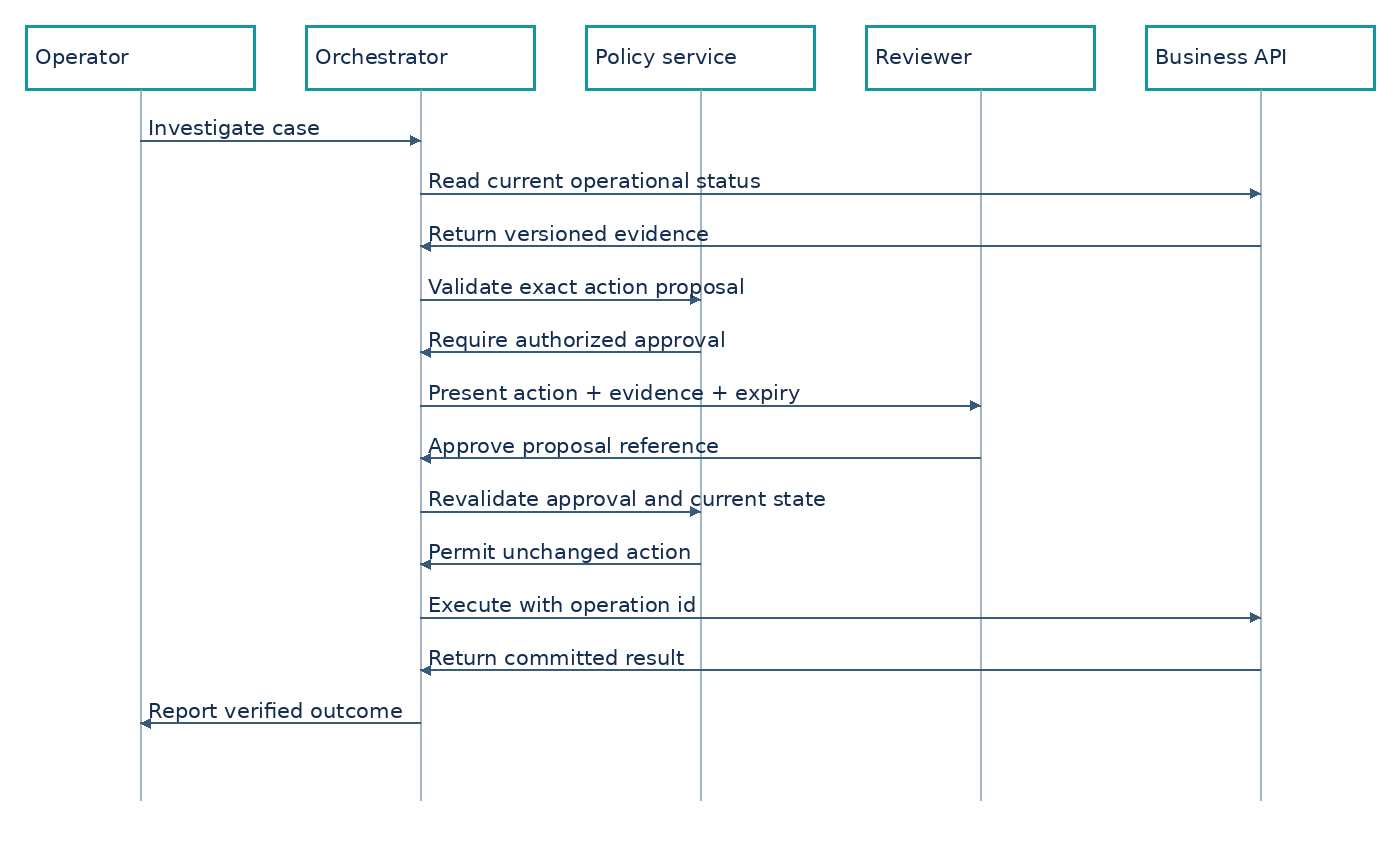

Approval should bind to an immutable proposal: action, arguments, evidence versions, tenant, reviewer and expiry. If the amount, destination or business state changes, get a new approval. A generic “yes” in conversation history is not enough for an operational write.
A Deep Agent harness helps when a case outgrows a short conversational loop. It manages files and growing context, delegates subtasks to agents with separate context windows and structures complex work into steps. These capabilities do not grant business authority.
An illustrative insurance workflow might split document completeness review, policy evidence retrieval and contradiction checking. Each specialist returns a typed result with source references, and the coordinator assembles findings for an adjuster. Set tool restrictions, sandbox boundaries, timeouts, maximum task depth and a shared cost budget. Delegation must never widen the original user’s access.
LangChain supports deterministic and model-based guardrail patterns. Use them inside a broader design: authentication, authorization and transaction policy stay in code and business services.
| Boundary | Recommended control | Failure behavior |
|---|---|---|
|
Incoming request |
Authenticate; validate scope and identifiers |
Reject unauthorized or malformed requests |
|
Retrieved content |
Enforce access; treat document instructions as untrusted data |
Exclude prohibited material; flag injection attempts |
|
Action proposal |
Validate schema, tool allowlist and business limits |
Block or route to review |
|
Approval |
Verify reviewer rights, proposal identity and expiry |
Require fresh authorized approval |
|
Tool execution |
Scoped credentials; idempotency; bounded retries |
Reconcile uncertain outcomes; escalate persistent failure |
|
Response and logs |
Check evidence support; minimize sensitive data |
Redact, regenerate within budget or escalate |
ENTERPRISE GUARDRAIL A retrieved PDF telling the assistant to ignore its instructions or export records is evidence content, not authority. Healthcare administration assistance does not become autonomous clinical decision-making, and financial triage does not become unrestricted money movement.
Evaluate the Outcome and the Path Taken
LangSmith distinguishes offline evaluation on curated examples from online evaluation on production behavior. Assess both the result and the trace: a correct final sentence can hide an unauthorized read or an unnecessary write.
RETRIEVAL
Did the required evidence appear?
GROUNDING
Are claims supported by cited evidence?
DECISIONS
Correct action or justified escalation?
SAFETY
Unauthorized access and duplicates blocked?
OUTCOME
Verified resolution, effort, p95 latency and cost?
Build a dataset from representative cases, including missing documents, conflicting policies, stale records, adversarial instructions, approval expiry, provider failure and duplicate events. Separate calibration examples from held-out acceptance cases. Use deterministic checks for permissions and numeric rules, and expert review to calibrate model judges. A judge’s score is an estimate, not proof.
A gateway centralizes model access. LiteLLM documents provider failover and fallback configuration, making it one possible routing component.
| Domain | Illustrative workflow | Connected systems | Human boundary / KPI |
|---|---|---|---|
|
Self Storage |
Investigate recurring-charge discrepancy using lease evidence |
PMS / billing / CRM |
Approve billing adjustment / resolution time |
|
Logistics |
Investigate delayed shipment and prepare customer update |
WMS / TMS / carrier APIs |
Approve dispatch or financial change / exception resolution time |
|
FinTech / Banking |
Assemble reconciliation or dispute evidence |
Payments / ledger / risk systems |
Authorized financial decision / reconciliation accuracy |
|
Healthcare |
Prepare administrative claim-document checklist |
EHR / claims / scheduling |
Qualified review for clinical or coverage decisions / completeness |
|
Insurance |
Assemble FNOL evidence and applicable policy clauses |
Claims / policy / document systems |
Adjuster decides coverage / time to review-ready case |
|
SaaS / Enterprise |
Investigate subscription or invoice exception |
CRM / billing / ticketing |
Approve refunds or entitlement changes / handling time |
These are proposed applications, not reported case-study results. The reusable part is the execution pattern: authorized evidence, explicit state, a validated proposal, the right approval boundary and a verified outcome.
| Stage | Concrete deliverable | Exit condition |
|---|---|---|
|
Discovery |
One workflow, baseline, risk map and owner |
Scope and acceptance criteria agreed |
|
Read-only prototype |
Evidence retrieval and cited recommendations |
Domain reviewers validate representative cases |
|
Controlled workflow |
Typed state, checkpoints, policy checks, approvals |
Recovery and permission cases pass |
|
Integration pilot |
Scoped tools, idempotency, reconciliation, gateway |
Limited live cases complete with verified results |
|
Production operation |
Monitoring, rollback, escalation, versioned evaluation |
Owner can support the system and measure outcomes |
An example deployment: a Python agent service, an API boundary to existing .NET business services, PostgreSQL for case metadata and durable checkpoints, and an approved retrieval backend. Package the worker separately from the web layer so long investigations don’t hold HTTP connections open. Version prompts, models, tools, retrieval configuration and policy together, keep a rollback path, and let staff continue the process when the agent is unavailable.
Start with one valuable problem and a clear definition of success. Give the system authorized evidence, explicit state, bounded tools and a tested path to human review. The strongest agentic systems combine flexible reasoning with engineering controls that make every outcome explainable and recoverable.
